       Industrial Scale LWM (25-100kg) P1
Industrial Scale LWM (25-100kg) P1
Functions and features of the scale:
Additional stabilization resultAdditional stabilization result
Counting piecesCounting pieces
Remembering last resultRemembering last result
Remembering last result Checkweighing
Backlit displayBacklit display
5 years warranty 5 years warranty on load cell
2 years warranty2 years warranty
Sign CE
Overview:

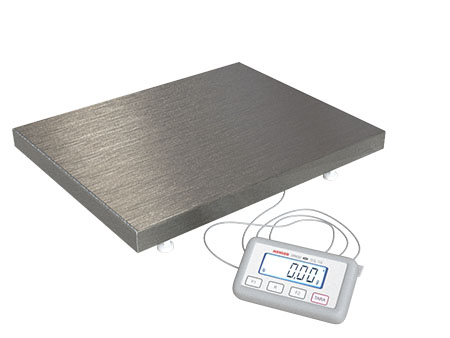

Industrial Scale LWM is equipped with backlight liquid crystal display, adjustable legs. Pan is removable, is made of stainless steel. Scale features: tare, remember the last result of weighing, checkweighing,counting pieces with same unit mass on the basis of sample 1 - 500pcs, and an additional filter - this feature enables stable reading during of weighing moving objects or ground vibrations.
Technical specification: LWM25P1 40X50S LWM50P1 40X50S LWM50DP1 40X50S LWM100P1 40X50S Additional options:
Max capacity 25kg 50kg 50kg 100kg
  • up to 50h on lion battery power to continuously work
  • RS 232 with cable 2m
  • RS 485
  • Genie program - description
  • higher IP rating for scale platform (IP 65)
Min capacity 250g 500g 500g 1000g
Tare range -25kg -50kg -50kg -5kg
Verification Unit (e) 5g 10g 10g 20g
Reading unit (d) 1g 2g 1g 10g
Time stability indications 1-3s
Weight 9kg
Working temperature +10°C - +40°C
Storage temperature -20°C - +60°C
Dimension of pan 40x50cm
Overall dimensions 40x50x9cm
Calibration Automatic control calibration
IP rating scale platform IP 53, box with display IP 54
Power supply stabilized adapter 12V/100mA
Figure - Overall dimensions and weight pan [cm]:
Industrial Scale LWM (25-100kg) P1 dimensions
